1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
1x ø150mm (6 in) Continuum cone FST midrange
2x ø165mm (6.5 in) Aerofoil Profile bass
Frequency range30Hz to 33kHz
Frequency response 46Hz - 28kHz ±3dB
Harmonic distortion 2nd and 3rd harmonics (90dB, 1m on axis) <1% 90Hz - 22kHz <0.5% 120Hz - 20kHz
Nominal impedance 8Ω (minimum 3.1Ω)
Recommended amplifier power 30W - 200W into 8Ω on unclipped programme
Sensitivity 90dB spl (2.83Vrms, 1m)
Technical features Decoupled Carbon Dome tweeter
Solid Body Tweeter-on-Top Continuum™ cone FST™ midrange
Decoupled midrange Aerofoil™ Profile bass cones
Flowport™Description
3-way vented-box system Max recommended cable impedance 0.1Ω
Room-filling realism

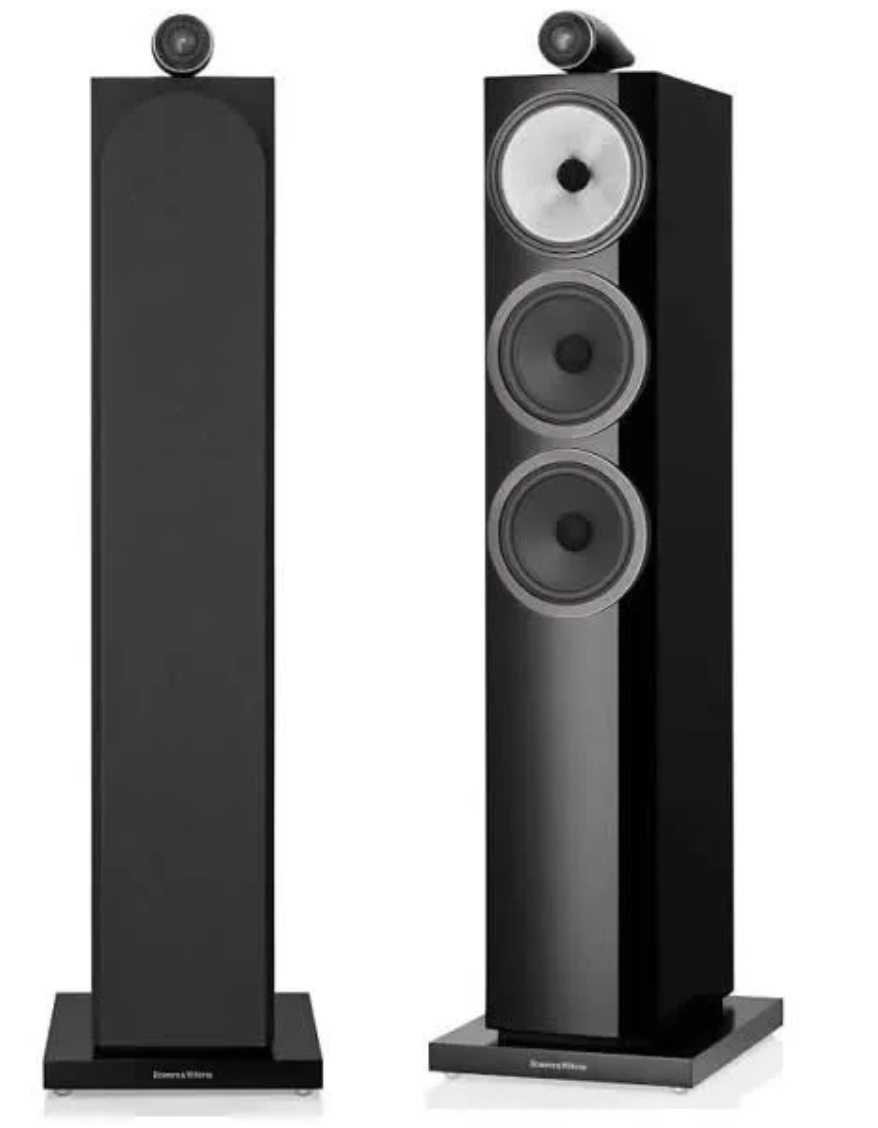

Its new Tweeter-on-Top configuration and the revolutionary Biomimetic Suspension in its decoupled midrange drive unit combine to raise the 703 S3 to all-new heights of performance.
A house for high
frequencies
The 700 Series features the latest generation of our iconic Solid Body Tweeter-on-Top housing. Its new, more elongated form incorporates a longer tube-loading system to produce an even more free and open sound with high frequencies. The carefully decoupled housing is milled from a single solid block of aluminum to better resist resonance.
Truly amazing sound
Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behavior that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.
Clean and clear
Every three-way loudspeaker in the new 700 Series has a dedicated midrange cone using four key Bowers & Wilkins technologies: the Continuum cone, FST™, Biomimetic Suspension and midrange decoupling, the latter ensuring minimal interference from the operation of the loudspeaker’s bass drivers.
A triumph of science
Developed using advanced computer modelling techniques, the Aerofoil™ Profile bass cone has variable thickness, providing stiffness and rigidity where it’s needed most. The result: deep and dynamic bass.
