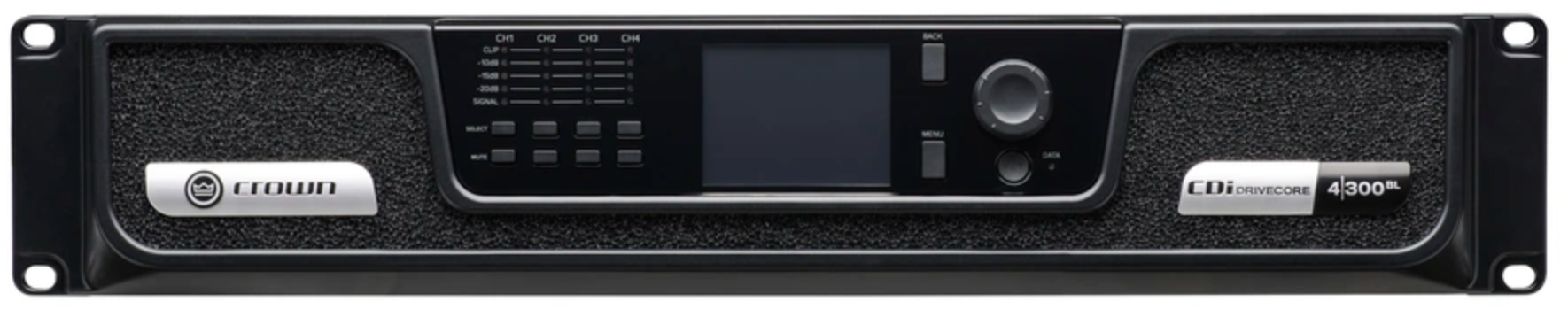

CDi 4|300BL Analog + BLU link input, 4 channel, 300W per output channel

The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost.  Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 4|300BL offers streamlined functionality to work in almost any small/medium sized installation such as restaurants, retail stores, and more.  Designed for ease-of-use in a variety of applications, the 4|300BL is a 4-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer.  The 4|300BL also comes with BLU link, adding the ability to send and receive channels over HARMAN’s digital audio BUS. The entire CDi DriveCore line comes pre-loaded with JBL speaker tunings to help make installations quicker and easier.



BLU link
Channels	4
Sensitivity (for full rated power at 8 ohms)	0.7V RMS
Rated Power Output (per channel @ 4 ohms)	300W
Analog Input Signal to Noise Ratio (ref. rated power, 100V, 20Hz - 20kHz) at 8 ohms)	> 104dB
THD (full rated power, 20 Hz - 20 kHz)	0.35%
Damping Factor (20 Hz to 100 Hz)	> 1000
Frequency Response (8Ω, 20 Hz - 20 kHz)	+/-0.5dB
Crosstalk (below rated power) 20 Hz to 1 kHz	> 80dB
Input Impedance (nominally balanced, nominally unbalanced)	20 kΩ balanced, 10 kΩ unblanced
Dimensions (inches) (W x H x D) (depth not including 1.3 inch front panel protrusion)	19 x 3.5 x 12.25
Weight	16.13 lbs (7.31 kg)
Power Supply Connector	"Standard IEC type 320 inlet for detachable connector 100 – 240V~"
