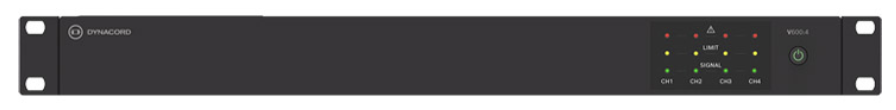

DYNACORD V600:4 Multi-channel power amplifier 4x150W (Instalação inclusa)

V Series
Go compact, amplify smart
Four-channel and two-channel amplifiers, with a total powerTANK capacity of 600 W
Variable Load Drive (VLD) providing the same power into 4 Ω, 8 Ω, 70 V or 100 V
ecoRAIL and APD deliver significant reduction in power consumption
dualCOOL convection cooling with additional intelligent fan in case of extreme thermal conditions
Designed with commercial applications in mind, V Series models are ideal for small to mid-sized installation scenarios. These compact amplifiers are not only designed for background music and announcements – they also excel when higher SPL levels are needed. Equipped with a range of cutting-edge Dynacord technologies to ensure flawless, silent operation and energy-saving, flexible power consumption, the V Series features two- and four-channel versions with different footprints that make them perfectly suited for a variety of installations.

Dynacord powerTANK technology adds even more installation flexibility, working like a power reservoir for the amplifier. With direct access to the total power of 600 watts, V Series can deliver asymmetric power across all channels as needed. There is no waste of energy, which allows great flexibility – especially when driving multiple audio zones with different loads. For example, a single V600:4 can simultaneously serve as system drive for the compact loudspeakers in a small zone (such as a kitchen area) as well as for larger loudspeakers (such as in an auditorium). Contributing to the ease of installation, this feature does not require any special configuration skills – powerTANK engages automatically. In conjunction with a DSP matrix – such as the Dynacord MXE5-64 Matrix Mix Engine – V Series amplifiers can also be specified for larger distributed installations working as a distribution amplifier for smaller zones.

The 4‑channel amplifier shall have a total power of 600 W, be able to adapt the power of the output
channels with power sharing in either 4-ohm, 8-ohm, 70 V or 100 V conditions on any channel
simultaneously. The amplifier housing shall be a 1 rack unit size design. The amplifier shall have a
thermal design that can operate as passive cooled device, but also be able to activate forced aircooling when required under extreme conditions, to avoid reduction in available power. The reliable
thermal operating range of the device shall be < 45 °C without reduction or shutdown. The amplifier
shall have an automatic power down mode that can be turned on or off with a standby consumption
of < 1 W. The amplifier shall also have a low power consumption feature whereby significant power
consumption is reduced maintaining the output modulation suitable for background music. The
amplifier shall be able to connect audio as either input or through to other devices using the
AES72‑1E wiring protocol. The amplifier shall be equipped with a PFC power supply and protections
to ensure reliable and safe operation including High Frequency Limiter (HFL), Output Current Limiter
(OCL), Rail Supervision Limiter (RSL), High Frequency Protection (HFP), DC Protection (DCP), Over
Current Protection (OCP), Mains Fail Protection (MFP), Output Balance Protection (OBP), Over
Temperature Protection (OTP), Over Voltage Protection (OVP). The amplifier shall be the Dynacord
V600:4 power amplifier.
