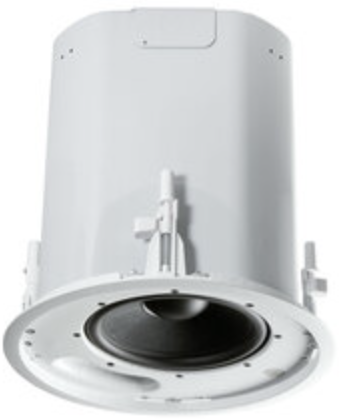

JBL Control 40CS/T - PAR High-Impact In-Ceiling Subwoofer (instalação inlclusa)

High-Impact In-Ceiling Subwoofer
The Control 40CS/T is a direct radiating, high impact, 8" subwoofer with a built-in passive crossover network enabling the Control 40CS/T to be used as part of a subwoofer-satellite system. When combined with the Control 42, the Control 40CS/T offers an extremely natural sounding and powerful subwoofer-satellite system that is perfect for applications requiring wide bandwidth and superior sonic performance with minimal visual impact. The system can also be used via an active crossover design with the rest of the Control Contractor in-ceiling line for superior bass response and can be operated off a 70V / 100V distributed line or in direct mode.

Features
Extended Bass Response with Maximum Impact
Passive Crossover Network for Easy to Install Subwoofer-Satellite Systems
Switchable 70V/100V or Low-Z
Elegant design fits any décor


Specifications
Frequency Range    32 Hz - 300 Hz
Power Rating    IEC System Long-Term Ratings (low-Z direct):
200 Watts Continuous Program Power
100 Watts Continuous Pink Noise(400W peak), 100 hr
Sensitivity    95 dB (near corner), 89 dB (center of ceiling)
Transformer Taps    80W, 40W, 20W (& 10W at 70V only)
Impedance    8 ohms (in bypass mode)
Drivers    200 mm (8 in) subwoofer
Termination    Screw-down removable locking clip-in connector
Satellite Outputs    Connectors for 2 or 4 Control 42C satellite speakers
Included Accessories    C-rings, tile rails, paint shield, cutout template, grille
Dimensions (Diameter x Depth)    332mm Diameter x 338mm Diameter Depth (13.1 in x 13.3 in)
Transformer Taps    80 W 40 W, 20 W, (& 10 W @ 70V), plus transformer bypass
Maximum SPL (1m)    109 dB (low-impedance, 115 dB peak, center of ceiling)
115 dB (low-impedance, 121 dB peak near corner)
108 dB (70V/100V, center of ceiling)
114 dB (70V/100V near corner)
Input Connectors    6 removeable locking 2-pin connectors with screwdown terminals.
Color    White
Safety Agency    Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan    formed steel (included "blind-mount")
Baffle/Rim    ABS baffle with UL94-V0 and UL94-5VB flame class fire rating.
Ceiling Cutout Size    307 mm Diameter (12.1 in) (cardboard cutout template included)
Optional Accessories    MTC-19NC New Construction Bracket, MTC-19MR Mud Ring Construction Bracket
Plenum Usage    Yes, backcan included
Coverage Angle    Omnidirectional
