JBL Control 426LP PAR (instalação inclusa)

Description
Enhanced Coverage

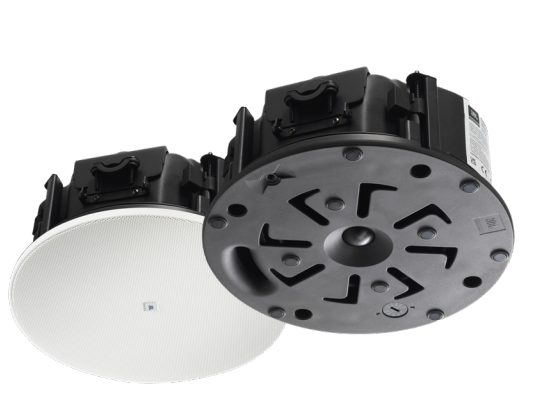

The JBL Control 426LP is a two-way coaxial ceiling loudspeaker, featuring a 6.5” woofer and a low-profile enclosure that is ideal for applications where ceiling plenum space is restricted. Integrated CRBI™ technology provides 110° of consistent, full, rich sound character that closely matches that of the Control 426C/T. A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available. Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses. Like all Control 400 Enhanced Coverage models, the Control 426LP includes a transformer to support both 70V/100V and low impedance applications. Priced as each, but packaged and sold only in pairs.

Specs
General Specifications
Frequency Range (-10 dB) 95 Hz – 19 kHz
Power Capacity 220 W Continuous Program (2 hrs) ; 110 W (440 W Peak), Continuous Pink Noise (2 hrs) ; 75 W (300 W Peak) Continuous Pink Noise Power (100 hrs)
Sensitivity 89 dB
Coverage Angle 110° conical
Maximum SPL (1m) 109 dB continuous pink noise (115 dB peak)
Nominal Impedance 12 ohms
Transformer Taps 70 V = 60 W, 30 W, 15 W & 7.5 W ; 100 V = 60 W, 30 W, 15 W
LF Driver 165 mm (6.5 in)
HF Driver 25 mm (1.0 in)
JBL-MTC-426BG black (RAL9004) magnetic round grille with tether JBL-MTC-426SG white (RAL9003) magnetic square grille with tether JBL-MTC-426NC new construction bracket JBL-MTC-426MR mud-ring construction bracket
Color Stock grille is white (RAL9003), paintable.
Dimensions 107 mm (4.2 in) H x 253 mm (9.9 in) dia. 98 mm (3.9 in) from bottom of ceiling tile to top of backcan (with wire exit positioned on side of backcan).
Ceiling Cutout Size 223 mm (8.8 in)
Net Weight (each) 3.9 kg (8.6 lbs)
Shipping Weight (pair packed in carton) 12.5 kg (27.6 lbs)
