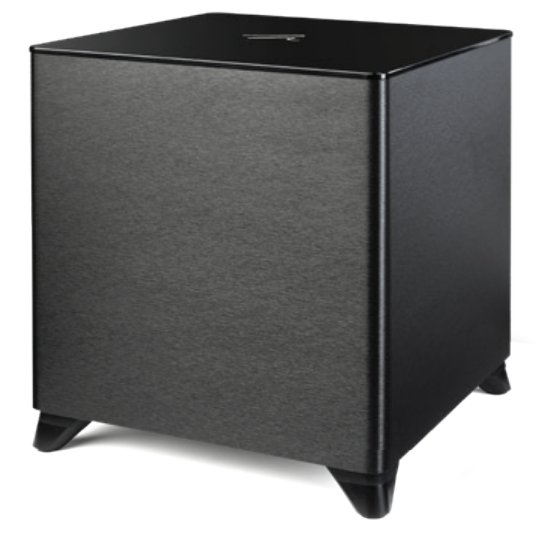

Martin Logan - Dynamo Foundation 12 - 700W peak (350W continuous) (instalação inclusa)

MartinLogan Dynamo Foundation Subwoofers are
carefully engineered for superior audio quality,
integrating advanced technology with sophisticated
design to help provide incredible home entertainment
experiences, at an exceptional value.
At the core of Dynamo Foundation subwoofers is a high-resolution 200MHz DSP engine
with 56-bit processing, power typically only found in high-end audio systems. This advanced
processing controls the powerful Magnitude® amplifier onboard, ensuring each note and
beat is reproduced with remarkable clarity and precision. Bid farewell to distortion and
artifacts with MartinLogan’s rigorous engineering guaranteeing pristine sound, immersing you
fully in your favorite content.
Crafted for both performance and aesthetics, Dynamo Foundation subwoofers feature
custom-designed ultra-rigid polypropylene woofers tuned to perfection. These proprietary
drivers deliver robust, deep bass with minimal distortion, even at high volumes. Whether
enhancing your living room audio or setting up a dedicated home theater, the compact yet
powerful design seamlessly integrates into any decor.
For added convenience, these subwoofers offer versatile connectivity options including
an LFE input for easy home theater setup and Stereo RCA inputs for compatibility with a
variety of audio equipment. Consider the optional WSK-1 Wireless Subwoofer Kit (sold
separately) for hassle-free installation flexibility.

FOUNDATION 12
Application
Subwoofer
Frequency Response
24–200 Hz ±3 dB (Anechoic via
LFE input)
Low Frequency Transducer
12” (30.5cm) high-excursion, UltraRigid Polypropylene (URP) cone in a
stamped steel basket
Amplifier
Magnitude® MT-700 Amplifier with
700W peak (350W continuous)
Digital Signal Processing
High-resolution 200MHz DSP
engine with 56-bit processing
Cabinet
Sealed MDF cabinet with reinforced
MDF woofer baffle
Controls (on backplate)
Level: Min–Max
Low-Pass Filter: 40Hz-Bypass
Power Mode: On, Auto
Phase: 0°, 180°
Inputs
Line Level: Left, Right/LFE
Wireless Input
WSK-1 Kit Sold Separately
Power Draw
Max: 350W
Standby: 0.5W
Feet
Non-Slip
Weight
29.1 lbs. (13.2 kg)
Dimensions (HxWxD)*
16" x 14" x 14"
(40.6cm x 35.8cm x 35.8cm)
Finish
Brushed black vinyl with high-gloss
top
