BSS Audio BLU-50v2 4x4 Signal Processor with BLU Link

BSS Audio BLU-50 v2 Overview
The BSS Audio BLU-50 is a 4x4 signal processor with built-in BLU link that provides 48 channels of low-latency, fault-tolerant digital audio. The BLU-50 is configured, controlled, and monitored for HiQnet Audio Architect and is compatible with other members of the Soundweb London family.

The 48 channels of BLU link bus represents channels 1-48 of a larger 256 channel BLU link bus when integrated with other BLU link devices such as the BLU-800, BLU-320, BLU-160, BLU-120, BLU-BIB, and BLU-BOB devices. Up to 60 BLU link compatible devices can share channels on a single bus. As with other Soundweb London devices, 12 Control Inputs, 6 Logic Outputs, and an RS-232 port allow the BLU-50 to be integrated with other compatible devices.

The 1/2 rack processor offers a fixed configuration of four inputs and four outputs, configurable signal processing, logic processing, and BLU link. The device can be powered via POE or from the included 12 VDC power adapter. The analog inputs of the BLU-50 provide software configurable gain in 6 dB increments up to +48 dB per channel. Software selectable phantom power is available per channel. The front panel provides LED indicators for phantom power, signal present, and clip information.

BLU-50v2 Improvements
Circuit board layout changes for improved BLU link performance
Upgraded ADC and DAC for matched performance with all BLU-10x series devices
New PoE power adaptor for improved compatibility with the following PoE standards:
PoE+ (Type 2)
PoE++ (Type 3)
PoE++ (Type 4)
Redesigned 12 VDC power circuit with improved allowed voltage range from 11.5 to 48 VDC
Enhanced thermal management for use in higher ambient temperature environments


At a Glance
4 analog inputs (with 48V phantom power per channel)
4 analog outputs
Configurable signal processing
Rich palette of processing and logic objects
48-channel, low-latency, fault-tolerant digital audio bus

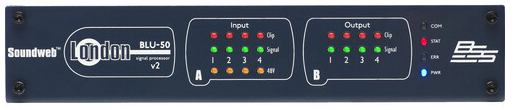

Clear front-panel LED indication
Bidirectional locate functionality
12 control inputs and 6 logic outputs for GPIO Integration
Soundweb London Interface kit for third-party control system integration
HiQnet device
Configuration, control, and monitoring from HiQnet London Architect
12-48 VDC or PoE+ powering options (12 VDC power supply included)
Optional rackmount, surface-mount, and desk-mount installation hardware available separately
