SAVANT - CENTRAL DE CONTROLE E ENTRETENIMENTO

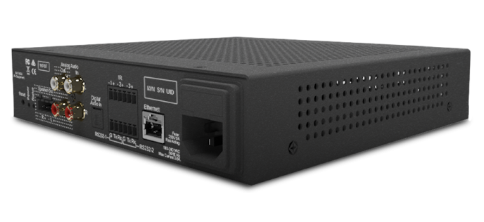

IP AUDIO 1 WITH INTEGRATED HOST AND SAVANT MUSIC 2.0 - HST-SIPA1SM-00

Product Description:
The IP Audio 1 is a Host with a high powered, single zone amplifier with a built-in stream of Savant Music as well as built-in control ports for a local equipment.  It is a great way to add an additional zone of high quality audio to any Savant IP Audio project.

The IP Audio 1 has enhanced DSP capabilities with embedded speaker profiles for Savant & Artison Speakers, elevating the listening experience.

KEY FEATURES

Has host capabilities
Enables 2 zones of audio switching: 1 zone of amplification at 125 watts per channel and 1 zone of pre-amp output (RCA)
DSP presets for Savant speakers
2 Audio inputs (1 analog, 1 digital) for distributing local audio sources
Built-in stream of Savant Music 2.0
Local control options (3 IR, 2 RS232)
Can be installed surface mount with included hardware; optional rack-mount bracket available (RMB-SIPA12F-00)

Environmental:

Temperature – 32° to 104° F (0° to 40°C)
Humidity – 10% to 90% (non-condensing)

Control Ports:

IR – 3 IR Control Ports
Serial – 2 3-Pin RS232 Ports

Dimensions and Weights:
Height – 1.70 in (4.34 cm)
Width – 7.89 in (20.04 cm)
Depth – 7.68 in (19.50 cm)
Net Weight – 3.5 lbs (1.59 kg)
Shipping Weight – 5.6 lbs (2.54 kg)
Rack Space – 1U; 2 units can be placed side-by-side in a standard 19” NEMA rack.

Power:
Input – 100/240V AC (50/60 Hz) 3.6A
Maximum – 414W
