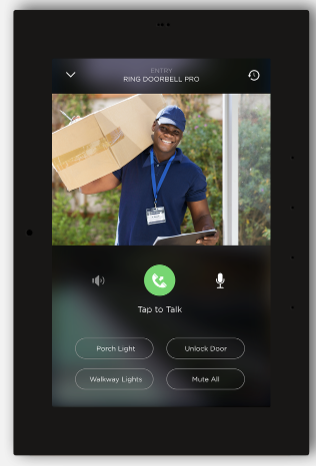

SAVANT TOUCH 8 INCH CONTROL SCREEN - BLACK

The Savant Touch 8 inch control screen delivers dedicated and elegant control with stunning, high resolution graphics. Control services throughout a home or facility, including audio, video, climate, security, pool/spa and much more. Activate scenes, view security cameras, or simply crank up the tunes, a Savant touch screen is perfect for high traffic areas where quick control is a must.

This enhanced version of the Savant Touch Control Screen includes a new high-powered processor (upgraded DSP chip) for greater responsiveness with large systems, plus an all-new noise cancelling microphone for door entry and communication applications.

Key Features

Black bezel
8” touch screen, mounts in a double gang
Compatible with new or retrofit installations with Power over Ethernet (PoE) connectivity
Wake up screen configurable to a specific room or service
Presence sensor to wake the touch screen when a person approaches
Works with Blueprint - does not require a config upload but users can be added in Blueprint for room restrictions
Mountable in portrait or landscape mode
Embedded Microphone and Speaker - now with improved noise-cancelling mic
Upgraded DSP processor for enhanced responsiveness
Can be flush mounted using available WallSmart flush mount kits

Specs

Environmental

- Temperature: 32° to 104° F (0° to 40° C)

- Humidity: 10% to 90% RH (non-condensing)

Dimensions

- Height: 8.80 in / 22.35 cm

- Width: 5.84 in / 14.84 cm

- Depth: (overall) 1.43 in / 3.63 cm

- Depth: (mounting) .62 in / 1.58 cm

- Weight (display only): 0.95 lbs / 0.44 kg

Screen

- Viewing Image (IPS) 8.0 in / 20.3 cm

- Resolution 1280 x 800 | 16.7M colors

Packaging with contents

- Weight: 1.85 lbs / 0.83 kg

Power

- Input Power: PoE 802.3at compliant

Compliance

- Safety & Emissions: FCC Part 15B | CE Mark | UKCA | WEEE

- RoHS Compliant

Minimum Supported Requirements

- Release: Savant OS: da Vinci 10.1.1

- Hardware: Requires pairing with a Savant Host
